What Are USB Standards? Your Complete 2022 USB Cheat Sheet

Learn more about amateur armed with chatgpt solves an erdős problem

The Universal Serial Bus has evolved dramatically since its 1996 debut. Understanding modern USB standards remains surprisingly complex. With multiple connector types, confusing naming conventions, and overlapping speed specifications, even tech-savvy users struggle to identify which cable does what.

This USB cheat sheet cuts through the confusion. You'll get clear explanations of every major USB standard, connector type, and speed rating you'll encounter in 2022.

Are you buying new peripherals, troubleshooting charging issues, or wondering why your "fast" cable transfers data slowly? This guide delivers the answers you need.

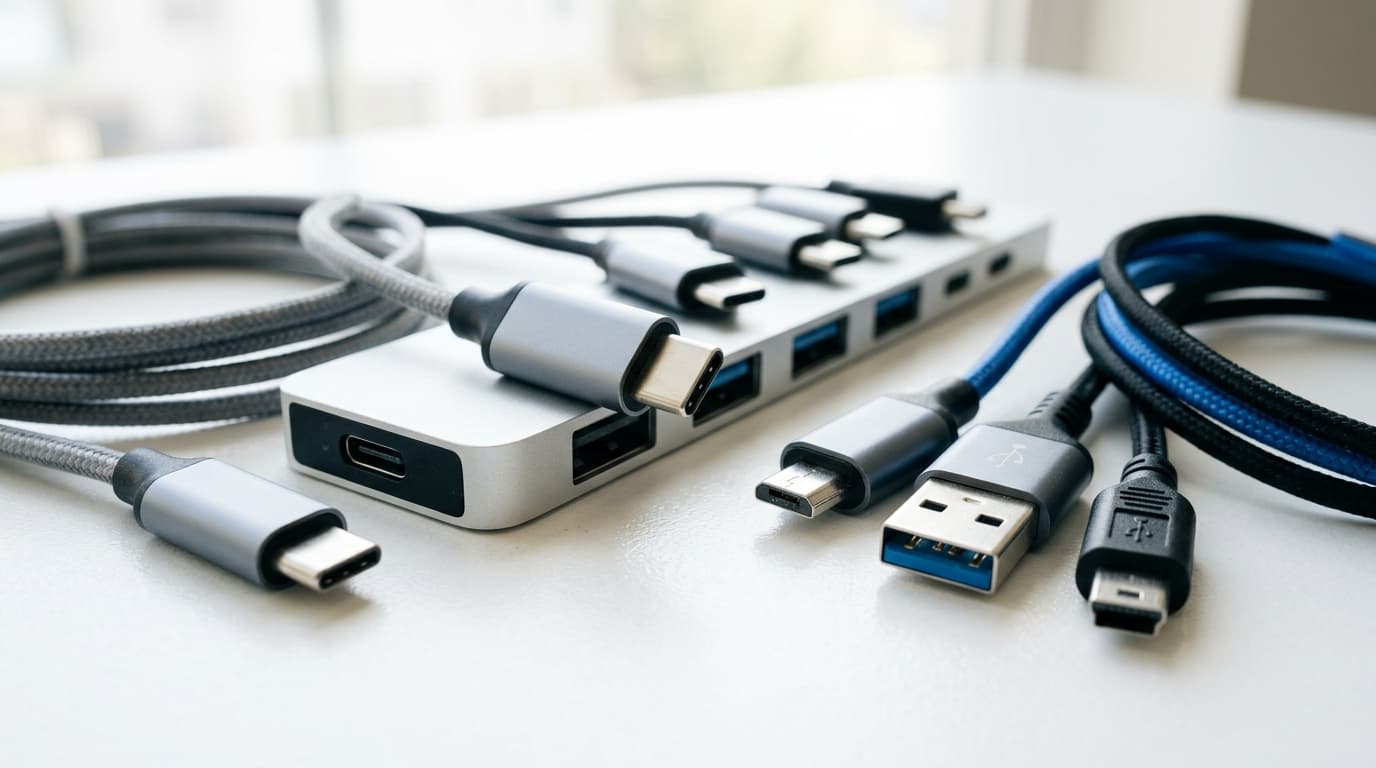

What Are the Different USB Connector Types?

USB connectors come in several physical formats. Each design serves specific use cases. Understanding these shapes helps you identify compatibility at a glance.

What Is USB Type-A?

The rectangular USB Type-A connector remains the most recognizable USB format. You'll find it on computers, wall chargers, and countless peripherals.

This connector only inserts one way. It features a flat rectangular shape with a small plastic tab inside.

USB Type-A supports multiple speed standards, from USB 1.1 through USB 3.2. The connector itself hasn't changed physically, but internal wiring differs between versions. Blue plastic inside typically indicates USB 3.0 or higher speeds.

What Is USB Type-B Used For?

USB Type-B connectors appear primarily on larger peripherals like printers and external hard drives. The standard Type-B features a square shape with beveled top corners.

USB 3.0 introduced a modified Type-B with an additional protrusion on top. These connectors prevent accidental connection of peripherals to each other. Type-B ports appear on devices, while Type-A connects to hosts like computers.

Why Is USB Type-C Different?

USB Type-C represents the future of USB connectivity. This small, oval connector inserts either way, eliminating the frustration of wrong-side-up attempts.

Type-C supports the fastest USB speeds, including USB 3.2 Gen 2x2 at 20 Gbps and USB4 at 40 Gbps. The connector also handles alternate modes, carrying DisplayPort video, Thunderbolt data, and Power Delivery charging up to 240 watts.

Not all USB-C cables support all features. A basic USB-C cable might only handle USB 2.0 speeds despite having the modern connector.

Are Micro-USB and Mini-USB Still Relevant?

Micro-USB dominated smartphone charging before USB-C adoption. The small, flat connector with angled corners appears on older Android devices, wireless headphones, and various accessories.

Mini-USB, slightly larger, appears on older cameras and devices from the mid-2000s. Both connector types support USB 2.0 speeds (480 Mbps) and basic charging.

For a deep dive on the free universal construction kit: bridge your building..., see our full guide

USB 3.0 Micro-B exists but remains uncommon. It features additional pins in a wider connector.

How Fast Are Different USB Standards?

For a deep dive on vibe-coded plugins give me synthedit déjà vu, see our full guide

USB speed specifications have undergone multiple confusing rebranding efforts. Here's what each standard actually delivers.

What Speed Does USB 2.0 Offer?

USB 2.0 transfers data at 480 Mbps (60 MB/s). This 20-year-old standard still powers countless devices, particularly peripherals that don't need high speeds.

Keyboards, mice, and basic webcams typically use USB 2.0. Charging through USB 2.0 maxes out at 2.5 watts (5 volts at 0.5 amps). This explains why some USB ports charge devices slowly.

What's the Difference Between USB 3.0, 3.1, and 3.2?

The USB 3.x family creates significant confusion due to multiple rebrandings:

USB 3.2 Gen 1 (formerly USB 3.0 and USB 3.1 Gen 1): 5 Gbps transfer speed
USB 3.2 Gen 2 (formerly USB 3.1 Gen 2): 10 Gbps transfer speed
USB 3.2 Gen 2x2: 20 Gbps transfer speed using two 10 Gbps lanes

These speeds represent maximum theoretical throughput. Real-world performance depends on drive speeds, cable quality, and system capabilities.

A USB 3.2 Gen 2 external SSD can transfer large files in seconds compared to minutes on USB 2.0.

What Makes USB4 Special?

USB4 launched in 2020, bringing Thunderbolt 3 technology into the USB specification. It delivers 40 Gbps bandwidth over USB-C connectors, matching Thunderbolt 3 performance.

USB4 requires USB-C physically and supports multiple data and display protocols simultaneously. Backward compatibility remains intact. USB4 ports work with older USB devices, though speeds drop to match the device's capabilities.

The standard also mandates USB Power Delivery support.

How Fast Can USB Charge Your Devices?

USB charging has evolved from barely powering devices to replacing dedicated laptop chargers.

What Is USB Power Delivery?

USB Power Delivery (USB PD) enables charging up to 240 watts through USB-C connections. The standard negotiates power levels between charger and device, delivering optimal charging speeds safely.

Common USB PD power profiles include:

15W (5V/3A): Basic fast charging for phones
27W (9V/3A): Tablet charging
45W (15V/3A): Ultrabook charging
65W (20V/3.25A): Standard laptop charging
100W (20V/5A): High-performance laptop charging
240W (48V/5A): Gaming laptop and workstation charging

USB PD requires compatible cables rated for the power level. A cable rated for 60W won't safely carry 100W charging.

How Do Quick Charge and Other Standards Compare?

Qualcomm Quick Charge predates USB PD, offering fast charging for Android devices. Quick Charge 4+ works alongside USB PD, while earlier versions use proprietary voltage negotiations.

Other manufacturers implemented their own standards, including OnePlus Warp Charge and Oppo VOOC. Most modern devices support USB PD as the universal standard.

What's the Difference Between Thunderbolt and USB?

Thunderbolt and USB share the same USB-C connector but offer different capabilities.

What Do Thunderbolt 3 and 4 Offer?

Thunderbolt 3 delivers 40 Gbps bandwidth, supports two 4K displays or one 5K display, and provides 15W device charging. Thunderbolt 4 maintains 40 Gbps speeds but adds stricter minimum requirements, including support for two 4K displays and 32 Gbps PCIe data speeds.

Thunderbolt cables cost more than standard USB-C cables due to active electronics inside. These cables support daisy-chaining up to six devices through a single port.

Are Thunderbolt and USB Compatible?

Thunderbolt ports support USB devices, but USB-C ports don't necessarily support Thunderbolt devices. Check for the Thunderbolt lightning bolt symbol next to ports.

Thunderbolt docks, external GPUs, and high-speed storage require Thunderbolt connectivity to function properly.

How Do You Choose the Right USB Cable?

Not all USB cables deliver the same performance, even with identical connectors.

What Should You Check in Cable Specifications?

Quality USB-C cables display certification logos and speed ratings. Look for "USB 3.2 Gen 2" or "10 Gbps" markings on the cable or packaging.

Cheap cables often lack proper shielding and wire gauge, limiting speeds and charging rates. USB-IF certified cables meet official specifications. The USB-IF certification logo indicates tested compliance with USB standards.

Does Cable Length Affect Performance?

USB cable length impacts signal quality. USB 2.0 works reliably up to 16 feet, while USB 3.x speeds degrade beyond 6-10 feet without active repeaters.

Thunderbolt cables max out at 6.5 feet for passive cables, though active cables extend to 165 feet. For high-speed data transfer, use the shortest cable practical. Longer cables work fine for charging or low-speed peripherals.

How Do You Match Cables to Your Needs?

A premium 40 Gbps Thunderbolt cable costs 10x more than a basic USB 2.0 cable. Evaluate your actual requirements.

Charging cables need appropriate power ratings but don't require high data speeds. External SSD connections benefit from USB 3.2 Gen 2 or higher speeds.

What Are Common USB Problems and Solutions?

USB connectivity issues frustrate users daily. Most problems stem from cable quality, power limitations, or compatibility mismatches.

Why Isn't My Device Recognized?

When devices fail to connect, try different ports and cables first. USB hubs can cause recognition issues, particularly for high-power devices. Connect directly to computer ports when troubleshooting.

Driver issues also prevent device recognition. Update USB controller drivers through Device Manager on Windows or System Preferences on macOS.

Why Are My Transfer Speeds Slow?

Slow transfers often result from USB 2.0 cables connected to USB 3.x ports. The connection defaults to the lowest common speed.

Replace cables with properly rated versions to achieve advertised speeds. Background processes and drive speed also limit transfer rates. A slow hard drive bottlenecks even the fastest USB connection.

Why Is Charging Inconsistent?

Charging problems typically stem from insufficient power delivery. USB 2.0 ports provide only 2.5W, too little for tablets and laptops.

Use dedicated charging ports or wall adapters for reliable charging. Damaged cables cause intermittent charging. Inspect connectors for bent pins or debris blocking connections.

What USB Developments Are Coming Next?

The USB standard continues evolving to meet increasing bandwidth and power demands.

What Is USB4 Version 2.0?

USB4 Version 2.0, announced in 2022, doubles bandwidth to 80 Gbps using existing USB-C connectors. This matches Thunderbolt 5 development efforts.

The standard supports up to 120 Gbps in one direction for asymmetric applications like displays. Implementation requires new controllers and cables. Expect USB4 v2.0 devices to appear in premium laptops and peripherals starting in 2024.

What Is Extended Power Delivery?

The 240W Extended Power Range specification enables charging powerful gaming laptops and workstations through USB-C. This eliminates the need for proprietary barrel connectors on high-performance systems.

Continue learning: Next, explore vongon rosetones: 12-note string synth pedal review

Adoption depends on manufacturers implementing the standard in both devices and chargers. Early
