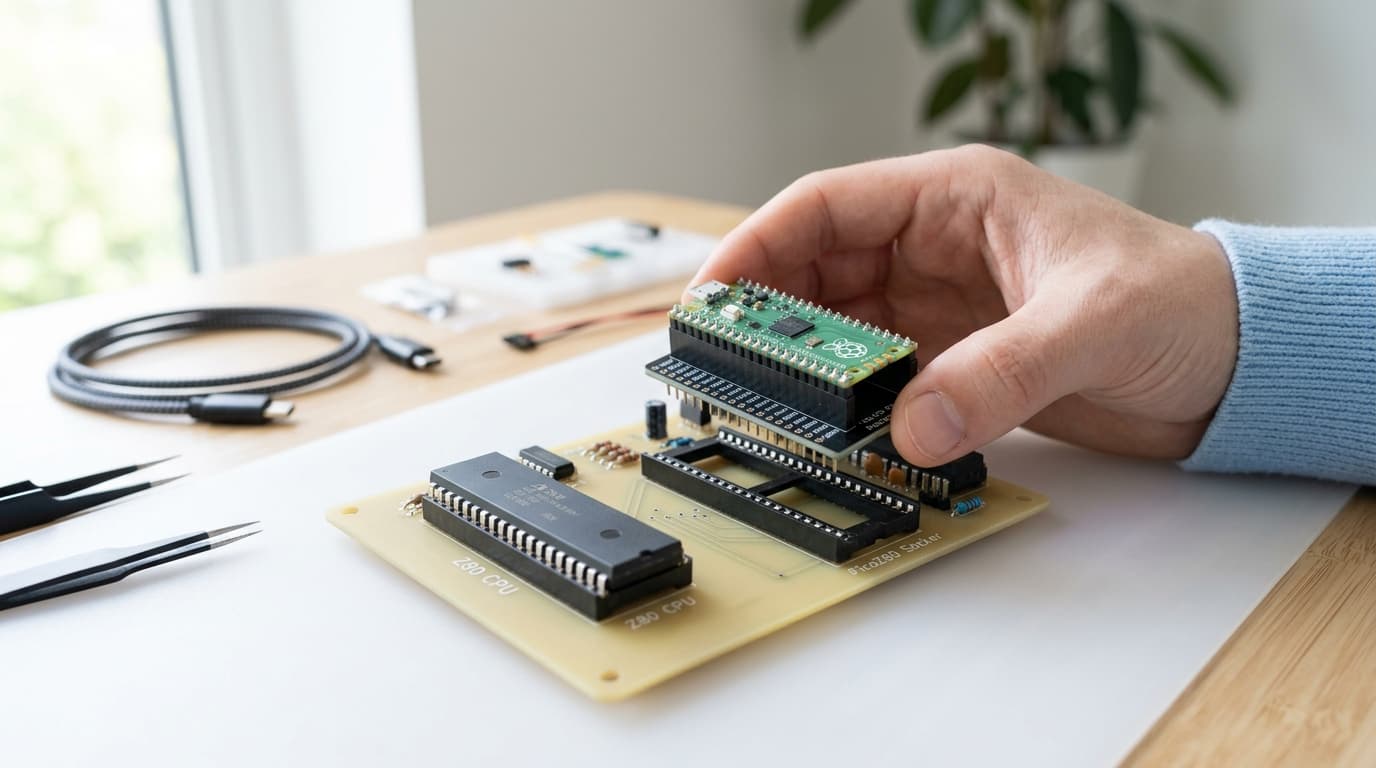

PicoZ80: Drop-In Z80 Replacement Using Raspberry Pi Pico

Understanding the PicoZ80 Drop-In Z80 Replacement

Learn more about native instant space switching on macos: speed up workflow

Vintage computer enthusiasts face a growing challenge: finding working Z80 processors for their beloved machines. The PicoZ80 project offers an elegant solution by transforming a modern Raspberry Pi Pico into a fully functional Z80 processor replacement. This innovation bridges four decades of computing history, allowing classic systems to run again without hunting for increasingly rare original chips.

The Z80 processor powered countless computers, game consoles, and embedded systems from the late 1970s through the 1990s. From the TRS-80 to the ZX Spectrum, this chip became synonymous with the home computing revolution. Today, finding functional Z80 chips grows harder as components age and supplies dwindle.

Why Is PicoZ80 a Game-Changer for Vintage Computing?

The PicoZ80 represents a clever marriage of old and new technology. The project uses the Raspberry Pi Pico's dual ARM Cortex-M0+ processors running at 133MHz to emulate the Z80's behavior with remarkable accuracy. One core handles the Z80 instruction set emulation while the other manages input/output operations and timing.

This approach delivers several advantages over hunting for original hardware. The Raspberry Pi Pico costs around $4, making it significantly cheaper than sourcing vintage Z80 chips. The modern microcontroller also provides consistent performance without the degradation issues that plague 40-year-old silicon.

The emulation runs at speeds matching or exceeding the original Z80 clock rates. Most vintage systems used Z80 processors running between 2MHz and 8MHz. The PicoZ80 handles these speeds effortlessly while maintaining cycle-accurate timing for compatibility with software expecting specific execution speeds.

How Does the PicoZ80 Hardware Implementation Work?

The physical implementation requires careful attention to the 40-pin DIP package that housed the original Z80. The Raspberry Pi Pico's GPIO pins must be mapped to match the Z80's pinout, including address lines, data lines, and control signals. This mapping allows the Pico to slot directly into a Z80 socket without modifications to the host system.

Key technical specifications include:

For a deep dive on apple's ultra line: premium products at premium prices, see our full guide

• 16-bit address bus supporting 64KB of memory space
• 8-bit data bus for communication with system components
• Control signals including MREQ, IORQ, RD, WR, and M1
• Interrupt handling through INT and NMI pins
• Clock signal generation matching original Z80 timing

The PicoZ80 firmware monitors these signals continuously, responding to memory and I/O requests within microseconds. This rapid response time ensures compatibility with peripherals and memory chips designed for the original Z80's timing characteristics.

For a deep dive on anthropic scales up claude cowork and managed agents, see our full guide

Which Vintage Systems Work with PicoZ80?

The versatility of this drop-in Z80 replacement extends across numerous vintage computing platforms. Any system using a standard 40-pin Z80 processor becomes a potential candidate for this upgrade. The compatibility list continues growing as enthusiasts test the PicoZ80 in different machines.

Popular systems that work with PicoZ80 include:

• TRS-80 Model I, III, and 4 computers
• Sinclair ZX Spectrum series
• MSX computers from various manufacturers
• CP/M-based business machines
• Arcade game boards using Z80 processors
• Various synthesizers and musical equipment

Each system presents unique challenges regarding timing and peripheral interactions. The PicoZ80 project benefits from an active community that shares configuration files and troubleshooting tips for different platforms.

How Do You Install and Set Up PicoZ80?

Getting started with PicoZ80 requires minimal technical expertise beyond basic soldering skills. The process begins with programming the Raspberry Pi Pico with the PicoZ80 firmware. This firmware is freely available and receives regular updates to improve compatibility and performance.

The physical installation involves creating or purchasing an adapter board that breaks out the Pico's pins to match the Z80's 40-pin layout. Some enthusiasts design custom PCBs, while others use prototyping boards and point-to-point wiring. The adapter must maintain proper signal integrity to avoid timing issues.

Once assembled, the PicoZ80 simply plugs into the existing Z80 socket. The host system remains completely unmodified, preserving its originality. Users can swap back to original hardware in seconds if desired.

What Configuration Options Does PicoZ80 Offer?

The PicoZ80 firmware offers several configuration parameters that users can adjust. Clock speed settings allow matching the original system's specifications precisely. Some users even experiment with overclocking their vintage systems beyond original specifications, though this risks compatibility issues with timing-sensitive software.

Debug features built into the firmware help troubleshoot problems. The Pico can output diagnostic information through its USB connection while simultaneously emulating the Z80. This capability proves invaluable when tracking down issues in complex vintage systems.

Advanced users can modify the firmware to add features like instruction tracing or memory snapshots. The open-source nature of the project encourages experimentation and community contributions. These modifications help preserve and document vintage software by providing insights into how programs execute.

What Are PicoZ80's Performance Characteristics and Limitations?

The PicoZ80 achieves impressive performance metrics for most applications. Standard Z80 software runs without noticeable differences from original hardware. The emulation handles all documented Z80 instructions, including undocumented opcodes that some software relies upon.

However, some limitations exist. Extremely timing-sensitive applications might encounter issues, particularly software that relies on precise instruction cycle counts. Early arcade games and some copy protection schemes fall into this category. The community continues refining the emulation to address these edge cases.

Power consumption represents another consideration. The Raspberry Pi Pico draws slightly more current than an original Z80, though the difference rarely causes problems in properly designed systems. Users should verify their power supply can handle the modest increase.

Why Choose PicoZ80 Over Original Z80 Hardware?

Several compelling reasons favor the PicoZ80 approach over searching for vintage processors. Original Z80 chips vary in quality after decades of use. Some exhibit intermittent failures or reduced reliability. The PicoZ80 provides consistent, reliable operation backed by modern semiconductor manufacturing.

Cost considerations also matter significantly. Rare Z80 variants or processors in good condition command premium prices from collectors. The PicoZ80 costs a fraction of these amounts while delivering equal or better performance. This affordability makes vintage computing more accessible to newcomers.

The project also serves an educational purpose. Students and hobbyists can study Z80 architecture and instruction sets through hands-on experimentation. The ability to modify firmware and observe execution provides learning opportunities impossible with original hardware.

What Community Support Exists for PicoZ80?

The PicoZ80 project thrives thanks to an engaged community of retro computing enthusiasts. Online forums and repositories host discussions, share improvements, and document compatibility findings. This collaborative environment accelerates development and helps users overcome challenges.

Future enhancements under consideration include support for Z80 peripheral chips like the PIO and CTC. Emulating these components on the same Pico would further reduce dependency on aging hardware. Some developers also explore using the Pico's second core for enhanced debugging capabilities.

The project's success has inspired similar efforts for other vintage processors. Enthusiasts are adapting the concept to create drop-in replacements for 6502, 6809, and other classic CPUs. This trend could revolutionize vintage computer restoration and preservation.

How Does PicoZ80 Help Preserve Computing History?

The PicoZ80 exemplifies how modern technology can preserve and extend the life of vintage computing systems. Rather than letting classic machines become unusable as components fail, projects like this ensure future generations can experience computing history firsthand. Museums, collectors, and hobbyists all benefit from these innovations.

This approach also raises interesting questions about authenticity in restoration. Does replacing the processor fundamentally change the machine's character? Most enthusiasts agree that maintaining functionality matters more than component-level originality, especially when the alternative is a non-functional system.

The broader implications extend beyond hobby computing. Industrial systems and embedded applications still rely on Z80 processors in some cases. The PicoZ80 offers these users a path forward when replacement parts become unavailable.

PicoZ80: Your Bridge Between Past and Present

The PicoZ80 drop-in Z80 replacement demonstrates the power of creative problem-solving in the retro computing community. By leveraging the Raspberry Pi Pico's capabilities, this project makes vintage computer restoration more accessible and reliable. The combination of low cost, high compatibility, and active development creates a compelling alternative to sourcing original hardware.

Whether you're restoring a childhood computer, maintaining a collection, or exploring computing history, the PicoZ80 provides a practical solution. The project proves that preserving the past doesn't require abandoning modern technology. Thoughtful integration of new and old creates opportunities that benefit everyone interested in vintage computing.

Continue learning: Next, explore eff leaves x: why the digital rights group quit twitter

As component availability continues declining, projects like PicoZ80 become increasingly important for keeping classic systems operational. The future of retro computing lies in this balance between authenticity and practicality.
